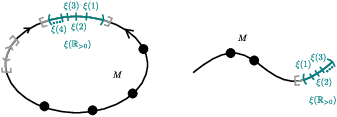

Example 8.1.5. The left picture below gives an example where $\xi$ is terminal for $(Z,M)$ but not outgoing for $Z$. The right picture is an example where $\xi$ is outgoing for $Z$.

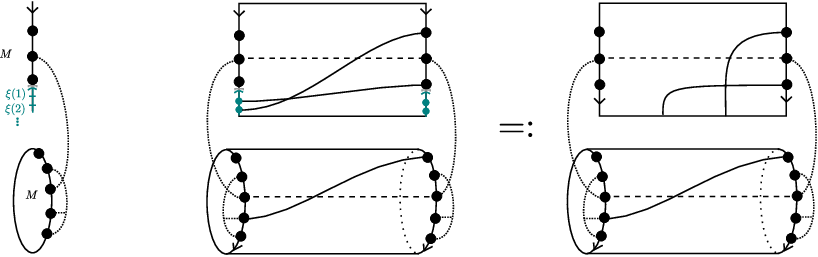

The picture below considers the case of a curve quotient of the disjoint union of an interval and a circle, with an outgoing $\xi$ at an end of the interval. The middle picture describes an element of $L^{\bullet}_{\xi}(-,-,e^{2})$. The rightmost picture provides a different graphical representation of that element: the interval $\xi({\mathbf{R}}_{\geq 1})$ has been moved to the bottom horizontal line.
